Used in geotechnical engineering to monitor the consolidation or subsidence of soil beneath a load such as an embankment, building foundation or surcharge.

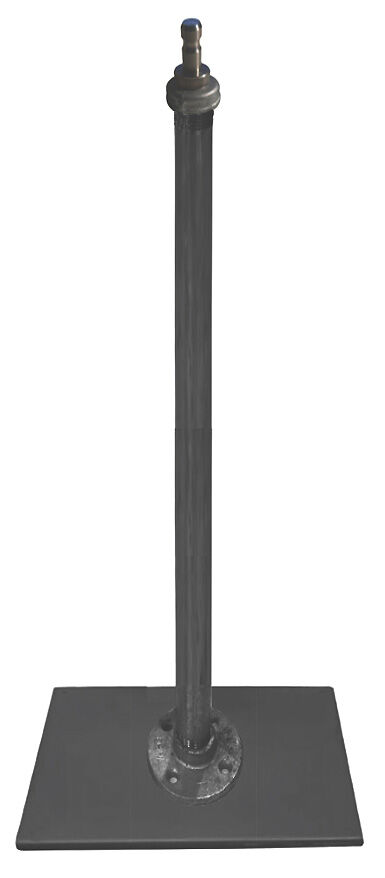

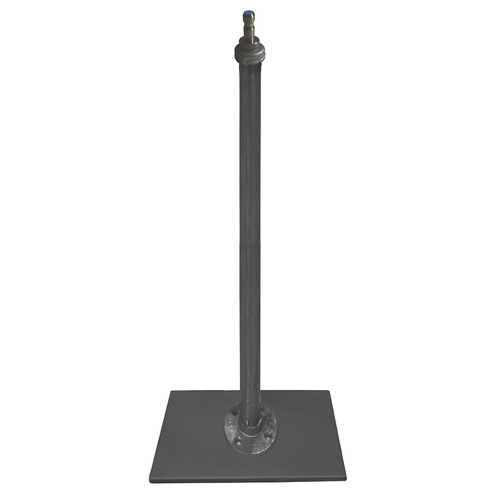

Configuration: 500x500x10 mm steel plate with attached flange, 1m x 25mm threaded riser, end cap and prism adapter.

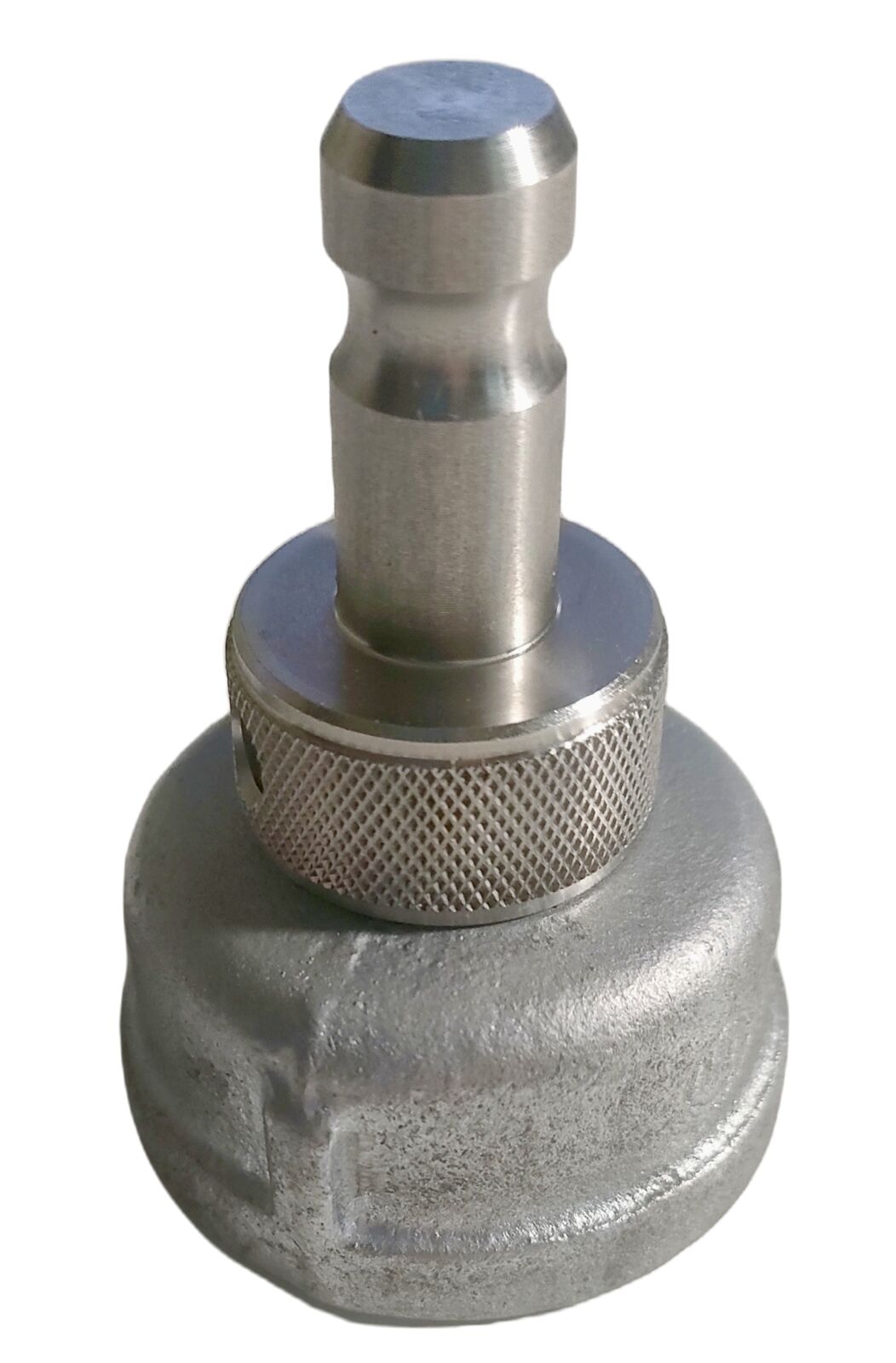

The galvanised steel cap is fitted with a stainless steel spigot adapter for monitoring using a level or total station.

As the height of cover increases, 1m extensions can be added to the riser.

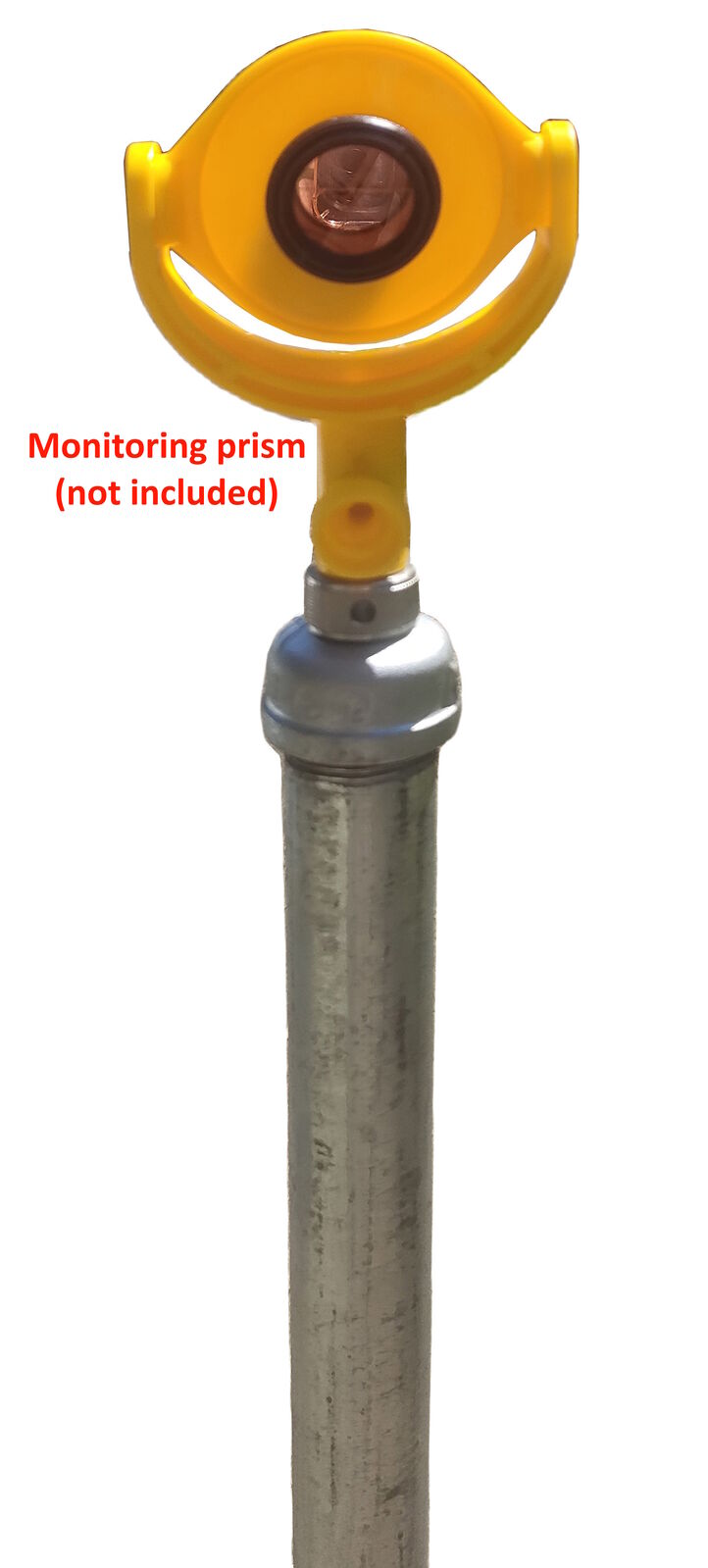

We can also supply a range of monitoring prisms - click here or here

**Please note: Due to weight, this item may be subject to an additional freight charge depending on your location.**



SKU GD-SP500
