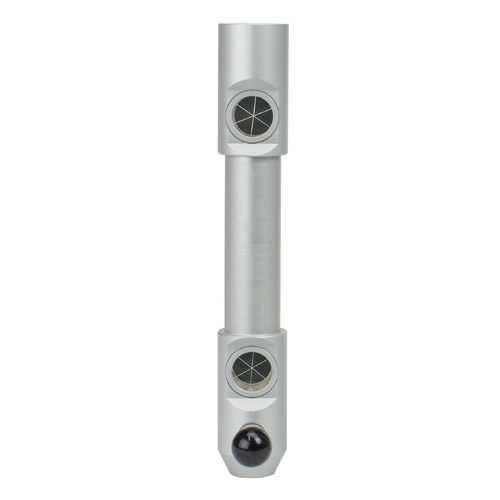

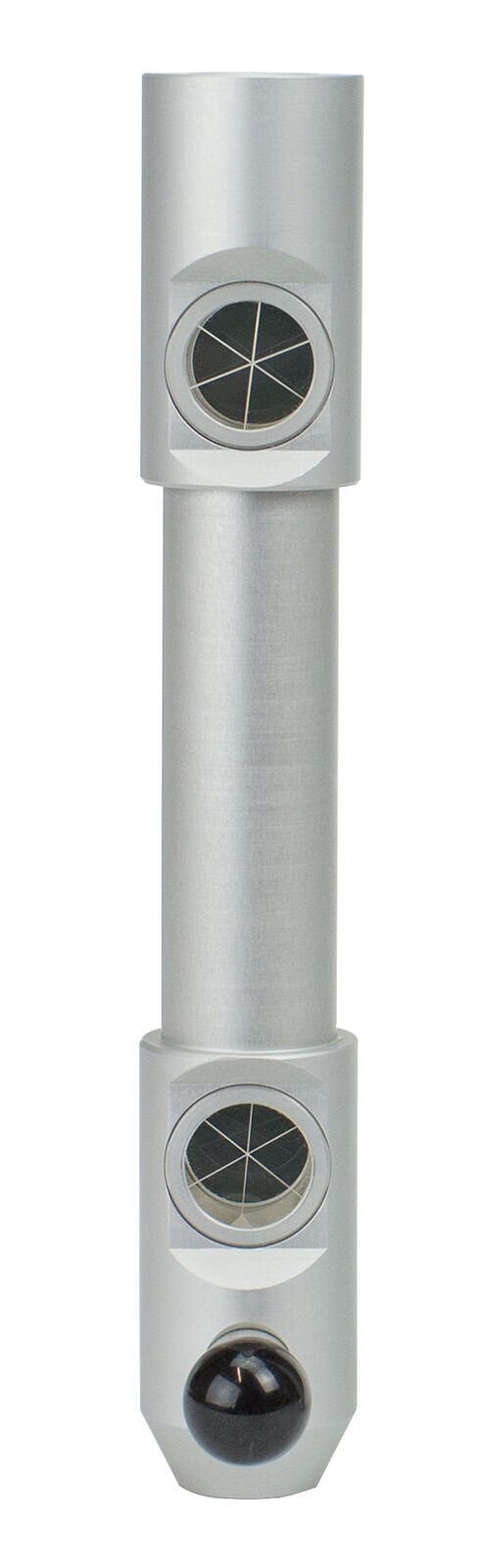

Precise hidden point bar with two integrated co-linear prisms.

A very accurate XYZ position of a point can be computed using the "hidden point" / “2-prism method” app on a total station.

Distance between prisms: 100mm.

Absolute prism constant K= -11.3mm. Leica constant = +23.1 mm.

5/8" internal thread on top, Leica socket on bottom.

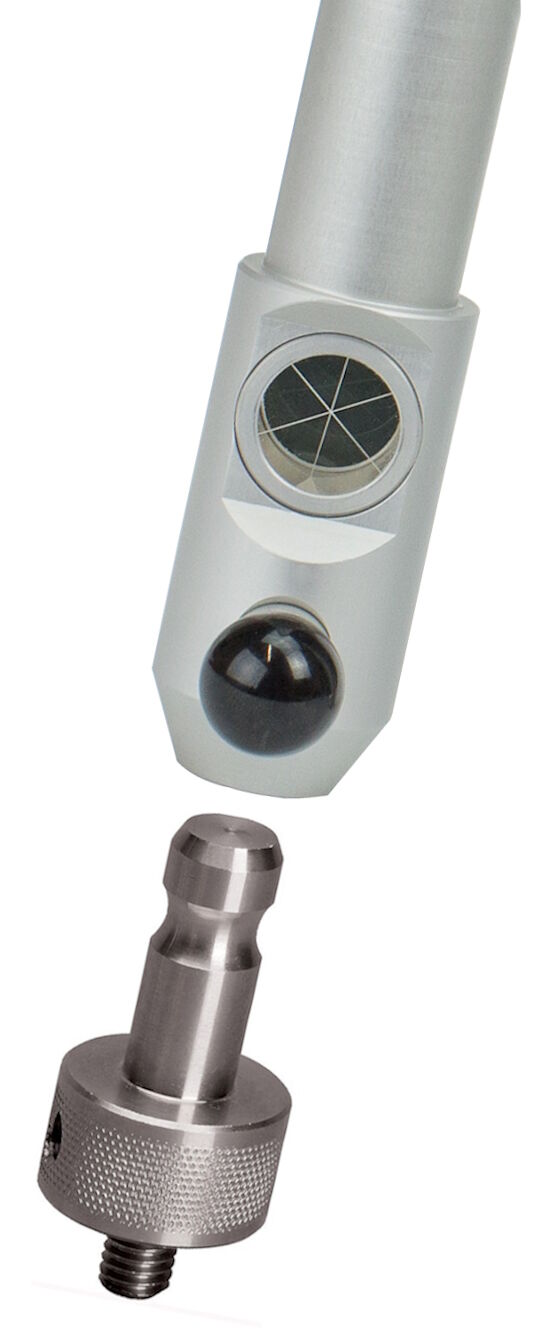

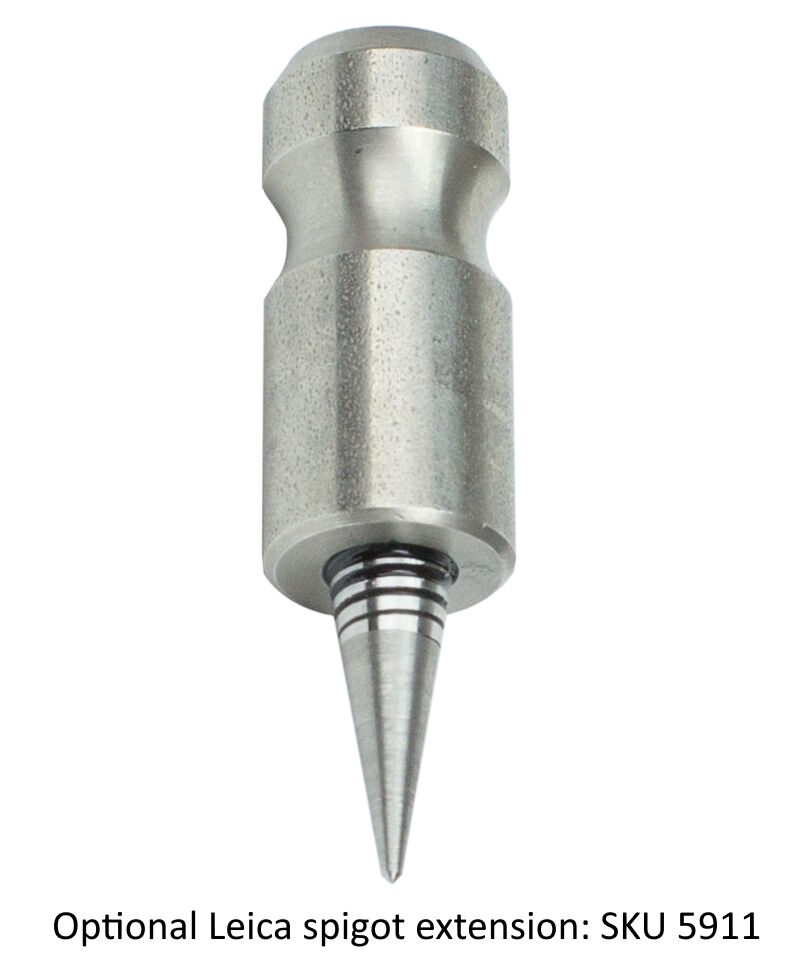

A Leica spigot is inserted into the Mini-Vektor and locked by an internal spring lock.

Note: spigot not included.



SKU 5910
